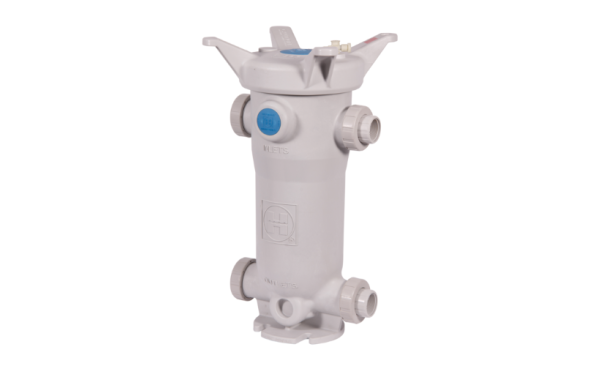

Offered in the revolutionary Platinum GFPP featuring true union end connections in 1-1/4 in. to 4 in sizes, with socket, threaded, fusion, or flanged ends.
One-piece injection-molded construction. FPM seals standard, with EPDM optional. Pressure rated for 150psi at 70F non-shock, with flow rates up to 100 GPM up to 2-inch; 150 GPM for 2-1/2 inch to 4-inch end connections. Available in size 1 and size 2 vessels, as well as Simplex or Duplex assemblies. Metric (DIN/EN) connections are also available.
Offered in the revolutionary Platinum GFPP featuring true union end connections in 1-1/4 in. to 4 in sizes, with socket, threaded, fusion, or flanged ends.
One-piece injection-molded construction. FPM seals standard, with EPDM optional. Pressure rated for 150psi at 70F non-shock, with flow rates up to 100 GPM up to 2-inch; 150 GPM for 2-1/2 inch to 4-inch end connections. Available in size 1 and size 2 vessels, as well as Simplex or Duplex assemblies. Metric (DIN/EN) connections are also available.
Features
Platinum Glass Filled Polypropylene
One-Piece Injection Molded Construction
Hand Removable, Ergonomic Cover with Liquid Displacing Dome
Vent Valve Included on Cover
Simplex Rated up to 100 GPM
Duplex Rated up to 150 GPM
True Union Socket, Threaded or Flanged End Connections
In-Line or Loop Flow Configurations
Double Length Solid Basket
Drain Port at Bottom
Integral Mounting Base
Easier Installations Due to True Union Connectivity
Vertical Flow Flutes in Basket, No Bag Snag, and More Flow Area
