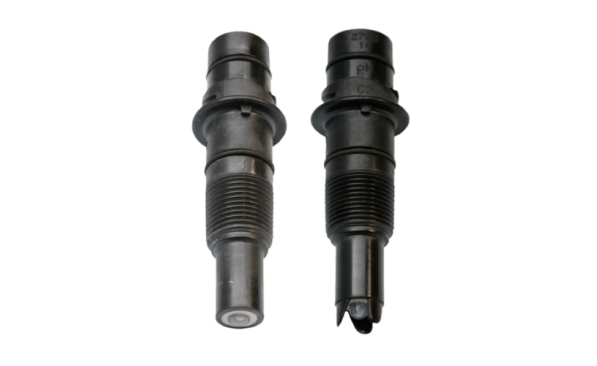

The DryLoc® connector with corrosion resistant gold-plated contacts readily connects the sensor body and choice of flat, bulb pH, or flat ORP sensing elements provide a broad range of chemical compatibility for a wide variety of applications.
There is an optional pH sensing version available for applications with HF. The HF version is for applications where traces of hydrofluoric acid (2% or less) will attack standard pH glass. The quick temperature response is available in a PT1000 temperature sensor and allows compatibility with the GF 9900 and 9950 instruments.
The sensors incorporate O-ring seal for use with 1/2" to 4" GF installation fittings. They can also be mounted directly into reducing tees, DN20 to DN100 (3/4" to 4")
Sensor tip must be in flow path.
Features
- Enhanced reference formulation to resist chemical poisoning and prolong the life of the electrodes in harsh environments
- PTFE reference junction resists fouling and chemical attack
- Superior pH glass (bulb style) formulation for excellent chemical resistance in acidic and alkaline/ caustic environments
- PPS body for broad range of chemical compatibility
- Memory chip enabled for access to a range of unique features when connected to the GF 2751 pH/ORP Smart Sensor Electronics
- Patented DryLoc® connector with gold plated contacts
- Mounts in GF standard installation fittings from DN15 to DN100 (1/2" to 4")
- NPT or ISO 7/1-R 3/4 threaded sensors for use with reducing tees DN20 to DN100 (3/4" to 4")
- Special design allows for installation at any angle, even inverted or horizontal
- Quick temperature response
- Bulb and flat HF resistant glass available for trace HF, in less than 2% concentration applications
Applications
- Water & Wastewater Treatment
- Neutralization Systems
- Plating Baths
- Air Scrubbers
- Metal Removal
- Process Control
- Cooling Towers
