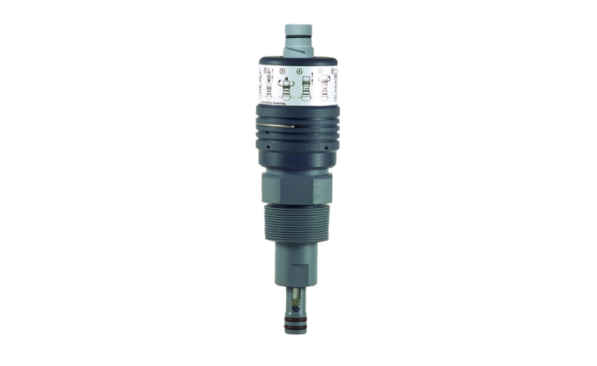

GF Signet Type 3719 pH/ORP Wet-Tap Assembly

Be the first to review this product

The Type 3719 pH/ORP Wet-Tap allows installation and removal of pH or ORP electrodes under process pressure, without the need for process shutdown during routine electrode maintenance and calibration.

Process isolation is achieved during electrode retraction with two sets of double O-ring seals on a unique and compact retraction assembly. No separate valve is therefore required. The Wet-Tap body design allows for full access to the plunger and internal O-rings, to easily perform maintenance such as lubrication/ replacement of O-rings and the cleaning of the internal plunger/ housing.

A patented cam-activated automatic locking mechanism, SafeLoc™, and the short stroke design help to assure operator safety. The Wet-Tap unit can be mounted at any angle and can be used with the GF DryLoc® Wet-Tap electrodes.

Use the filters below to select your product

Shop

Features

Electrode removal without process shutdown
Space saving 45 mm (1.75") short-stroke design
SafeLoc™: Cam-activated automatic locking mechanism
Protects electrode sensing surface from breakage
Suitable for mounting in any orientation
Process threaded connection NPT or ISO
Fully serviceable internal O-rings

Applications

Aquatic Animal Life Support Systems
Recreational Water Monitoring
Water & Wastewater Treatment
Sanitization Systems
Pool and Spa Control

GF Signet Type 3719 User Manual

GF Signet Type 3719 Data Sheet

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Options

Grouped product items
GF Signet Type 3719 pH/ORP Wet-Tap Assembly- 3-3719-11 Manufacturer: GF Signet Model: 3-3719-11 Mounting: 1.5" NPT Style: Wet-Tap assembly Compatible Electronics: 2751 Process Conection: 1.5 NPT Special Features: Wet-Tap

GF Signet Type 3719 pH/ORP Wet-Tap Assembly- 3-3719-12 Manufacturer: GF Signet Model: 3-3719-12 Mounting: 1.5" ISO Style: Wet-Tap assembly Compatible Electronics: 2751 Process Conection: 1.5 ISO Special Features: Wet-Tap

GF Signet Type 3719 pH/ORP Wet-Tap Assembly- 3-3719-21 Manufacturer: GF Signet Model: 3-3719-21 Mounting: 2" NPT Style: Wet-Tap assembly Compatible Electronics: 2751 Process Conection: 2" NPT Special Features: Wet-Tap

GF Signet Type 3719 pH/ORP Wet-Tap Assembly- 3-3719-22 Manufacturer: GF Signet Model: 3-3719-22 Mounting: 2" ISO Style: Wet-Tap assembly Compatible Electronics: 2751 Process Conection: 2" ISO Special Features: Wet-Tap
