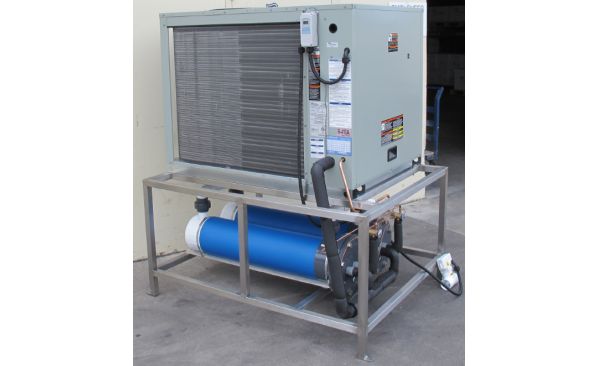

Multi Temp Air Cooled Chillers for Aquaculture

Details

2 Hp – 25 Hp
Insulated Titanium Heat Exchanger
TRANE Condensing Unit
Dual Stage Digital Temperature Controller in NEMA4X enclosure
Built in Safety Flow Switch
Automatic Temperature Ranging
Temperature Range down to 40ºF
Includes stainless steel stand
Fresh or Saltwater use
All units suitable for outdoor use
One-year warranty
Made in USA

Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Downloads

MT-1-Thru-MT-8-Water-Chiller-Specifications

MT-9-Thru-MT-12-Water-Chiller-Specifications

MT-15-MT-20-Water-Chiller-Specifications

MT-25-Water-Chiller-Specifications-Sheet

MT-30-460v-Specifications

MT-40-460v-Specifications

MT-HP-1.5-to-5-ton-Instructions-1-2016

MT-HP-7.5-to-20-ton-Instructions-1-2016

MT-25_30_40-ton-Instructions

Options

Grouped product items
MT-1, 2HP, 208-240V, 1PH Manufacturer: Aqua Logic BTU Removal Capacity: 24,000 HP: 2 Voltage: 208-240 Amperage: 11 In / Out: 2" Phase: 1 Connection Type: Union Socket Min / Max Flow: 20-40
MT-3, 3HP, 208-240V, 1PH Manufacturer: Aqua Logic BTU Removal Capacity: 36,000 HP: 3 Voltage: 208-240 Amperage: 18 In / Out: 2" Phase: 1 Connection Type: Union Socket Min / Max Flow: 20-40
MT-4, 3HP, 208-240V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 36,000 HP: 3 Voltage: 208-240 Amperage: 10 In / Out: 2" Phase: 3 Connection Type: Union Socket Min / Max Flow: 20-40
MT-4-460, 3HP, 460V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 36,000 HP: 3 Voltage: 460 Amperage: 6 In / Out: 2" Phase: 3 Connection Type: Union Socket Min / Max Flow: 20-40
MT-5, 4HP, 208-240V, 1PH Manufacturer: Aqua Logic BTU Removal Capacity: 48,000 HP: 4 Voltage: 208-240 Amperage: 23 In / Out: 2" Phase: 1 Connection Type: Union Socket Min / Max Flow: 30-60 GPM
MT-6, 4HP, 208-240V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 48,000 HP: 4 Voltage: 208-240 Amperage: 15 In / Out: 2" Phase: 3 Connection Type: Union Socket Min / Max Flow: 30-60 GPM
MT-6-460, 4HP, 460V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 48,000 HP: 4 Voltage: 460 Amperage: 7 In / Out: 2" Phase: 3 Connection Type: Union Socket Min / Max Flow: 30-60 GPM
MT-7, 5HP, 208-240V, 1PH Manufacturer: Aqua Logic BTU Removal Capacity: 60,000 HP: 5 Voltage: 208-240 Amperage: 27 In / Out: 2" Phase: 1 Connection Type: Union Socket Min / Max Flow: 30-60 GPM
MT-8, 5HP, 208-240V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 60,000 HP: 5 Voltage: 208-240 Amperage: 17 In / Out: 2" Phase: 3 Connection Type: Union Socket Min / Max Flow: 30-60 GPM
MT-8-460, 5HP, 460V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 60,000 HP: 5 Voltage: 460 Amperage: 8 In / Out: 2" Phase: 3 Connection Type: Union Socket Min / Max Flow: 30-60 GPM
MT-9, 7.5HP, 208-240V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 90,000 HP: 7 1/2 Voltage: 208-240 Amperage: 28 In / Out: 3" Phase: 3 Connection Type: Union Socket Min / Max Flow: 60-120 GPM
MT-9-460, 7.5HP, 460V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 90,000 HP: 7 1/2 Voltage: 460 Amperage: 15 In / Out: 3" Phase: 3 Connection Type: Union Socket Min / Max Flow: 60-120 GPM
MT-10, 10HP, 208-240V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 120,000 HP: 10 Voltage: 208-240 Amperage: 35 In / Out: 3" Phase: 3 Connection Type: Union Socket Min / Max Flow: 60-120 GPM
MT-10-460, 10HP, 460V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 120,000 HP: 10 Voltage: 460 Amperage: 19 In / Out: 3" Phase: 3 Connection Type: Union Socket Min / Max Flow: 60-120 GPM
MT-12, 12.5HP, 208-240V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 150,000 HP: 12 1/2 Voltage: 208-240 Amperage: 50 In / Out: 3" Phase: 3 Connection Type: Union Socket Min / Max Flow: 60-120 GPM
MT-12-460, 12.5HP, 460V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 150,000 HP: 12 1/2 Voltage: 460 Amperage: 27 In / Out: 3" Phase: 3 Connection Type: Union Socket Min / Max Flow: 60-120 GPM
MT-15, 15HP, 208-240V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 180,000 HP: 15 Voltage: 208-240 Amperage: 50 In / Out: 3" Phase: 3 Connection Type: Union Socket Min / Max Flow: 120-180 GPM
MT-15-460, 15HP, 460V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 180,000 HP: 15 Voltage: 460 Amperage: 25 In / Out: 3" Phase: 3 Connection Type: Union Socket Min / Max Flow: 120-180 GPM
MT-20, 20HP, 208-230V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 180,000 HP: 20 Voltage: 208-240 Amperage: 78 In / Out: 3" Phase: 3 Connection Type: Union Socket Min / Max Flow: 120-180 GPM
MT-20-460, 20HP, 460V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 180,000 HP: 20 Voltage: 460 Amperage: 40 In / Out: 3" Phase: 3 Connection Type: Union Socket Min / Max Flow: 120-180 GPM
MT-25, 25HP, 208-240V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 300,000 HP: 25 Voltage: 208-240 Amperage: 82 In / Out: 3" Phase: 3 Connection Type: Union Socket Min / Max Flow: 120-180 GPM
MT-25-460, 25HP, 460V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 300,000 HP: 25 Voltage: 460 Amperage: 40 In / Out: 3" Phase: 3 Connection Type: Union Socket Min / Max Flow: 120-180 GPM
MT-30-460, 30HP, 460V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 376,000 HP: 30 Voltage: 460 Amperage: 54 In / Out: 3" Phase: 3 Connection Type: Union Socket Min / Max Flow: 120-160 GPM
MT-40-460, 40HP, 460V, 3PH Manufacturer: Aqua Logic BTU Removal Capacity: 533,000 HP: 40 Voltage: 460 Amperage: 75 In / Out: 3" Phase: 3 Connection Type: Union Socket Min / Max Flow: 120-160 GPM
