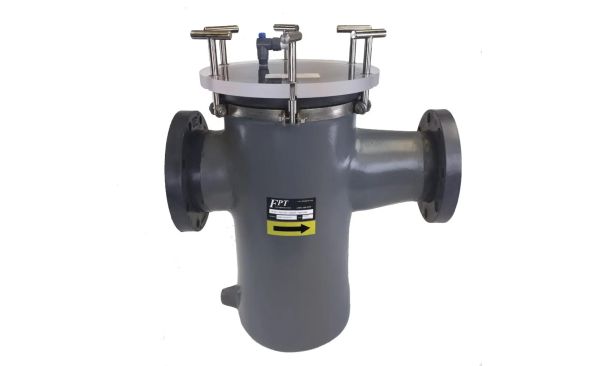

RSW1 Basket Strainer

Features

• Composite construction offers corrosion resistance of PVC and the mechanical strength of fiberglass.
• Molded FRP Body contoured for minimal form drag.
• Engineered for very low-pressure drops making it an excellent choice for pump suction applications.
• Best in class hardware and accessories.
• Customizable dimensions and features.
• Integral Eccentric Reducer typically required on modern pool circulation designs- eliminating this fitting in the system.

Specifications

Acrylic Lid

• Clear acrylic lid features almost crystal clarity and weather-ability. Lid thickness depends on size of strainer. 10" and below have 1" thick lids. 12" and above have 1.5" thick lids.

Flange Connection

• All strainers are supplied with loose rig flanges. PVC strainers utilize SCH 80 flanges produced from PVC type 1 and conform to ANSI B16.5, Class 150- up to 12" in size. Fabricated flanges utilizing PVC and FRP are provided for 14" and larger.

Flow Rate

• Sized for typical commercial aquatic flow velocities in respective strainer inlet pipe size.

Lid Attachment Assembly

• Machined from solid 316 SS bar and should outlast the strainer. Number of T-handles depends on size of strainer, e.g., 10" and below have 6 T-handles.

Materials

• PVC/FRP or stainless steel

Standards

• Cell Class 23447-B as in ASTM D-1784, F-441, F-437, F-493, ANSI B 16.5 cl 150

Strainer Identification

• All strainers are given labels with a serial number for future reference. Complete records are kept at the factory. In the event an end user needs assistance, parts or replacement, Fluidtrol is able to identify the exact strainer. Even special circumstances of each individual unit can be filed.
